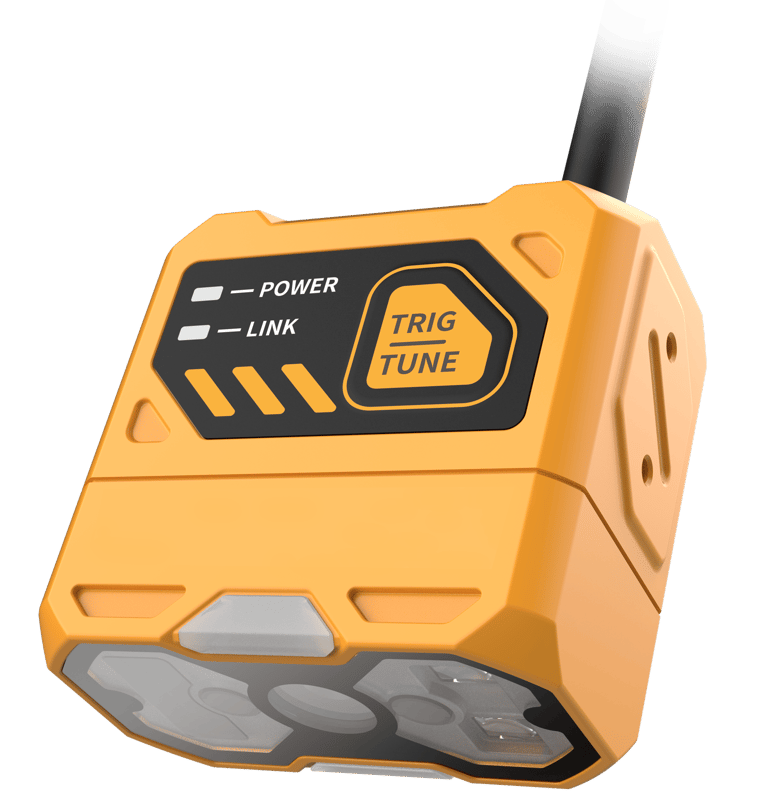

Fixed intelligent code reader VS800P
The VS800P intelligent code reader is a compact and high-performance code reader independently developed. The VS800 adopts a liquid zoom lens, which can achieve millisecond-level high-speed auto-focusing, ensuring fast, accurate and clear focusing. Equipped with the deep learning decoding algorithm independently developed by Smore, the decoding is fast. The VS800 is compact and small in size, supporting integration into various mechanical equipment such as LDI exposure machines, ABF laminating machines, wafer inspection equipment, bonding equipment, and deposition equipment, making it suitable for installation in ultra-small Spaces. It is flexible and convenient to deploy, and can provide users with a flexible, stable and high-speed code reading solution.
Product Features

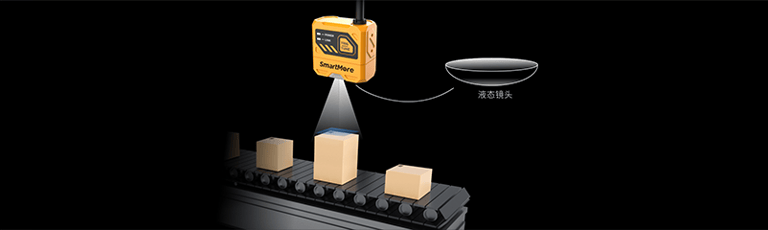

Liquid focusing technology
The VS800P is equipped with a liquid zoom lens and, in combination with Smore's independently developed Cube-A Technology focusing algorithm, can achieve a single millisecond-level zoom speed.
Convenient to adjust

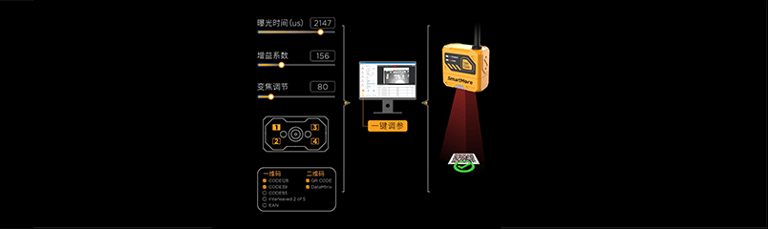

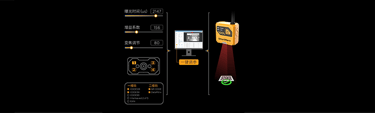

With just one click, press the Tune key on the body of the code reader to automatically adjust the focusing, exposure, gain, light source and code search parameters for different scenarios such as dark and bright fields. Users can quickly get started without training, which greatly simplifies the debugging process of the code reader and reduces the debugging time for users.

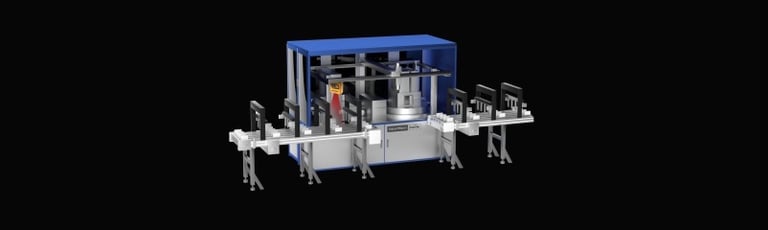

The body is compact and flexible for installation
The VS800p is compact in size, with dimensions of 47mmx25mmx43mm, allowing for installation even in confined Spaces. It is embedded with 4 LED light sources and equipped with 2 green sights, allowing users to quickly determine the code reading area.

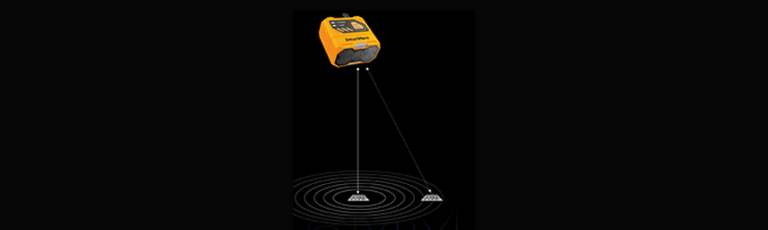

Flexible working distance
The VS800p supports a working distance of 30mm to 300mm, covering the mainstream code reading object distance application scenarios on the market. The 6mm liquid lens it is equipped with can provide users with flexible code reading application scenarios.
Our vision
To achieve an out-of-the-box effect, we have adopted ai algorithm optimization, liquid lens ultra-fast focusing, flexible light source system and intelligent operation platform. There are numerous applications and cases in business scenarios such as logistics, manufacturing, and warehouse management. Help customers complete the selection, installation and usage quickly, efficiently and economically.

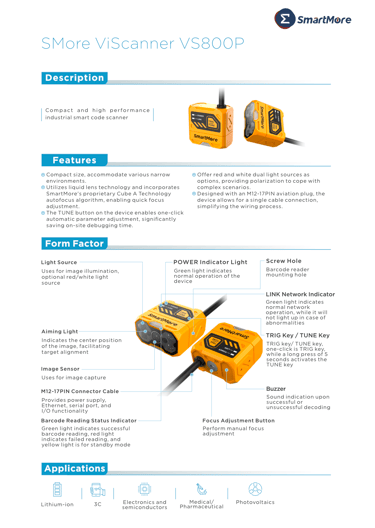

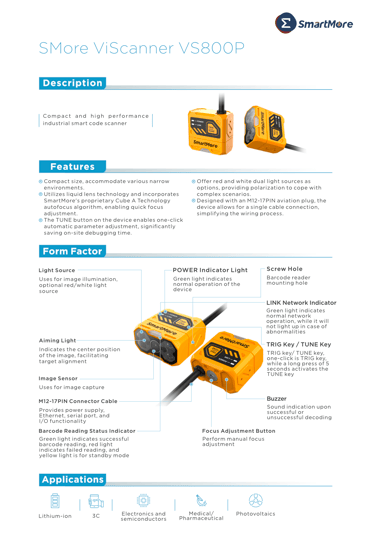

VS800P Data Sheets
VS800P ~ English
PDF / 3.2 Mb
